MQ-100L column speakers

MQ100L

MQ 100L (available in black and white) is a 3 way column loudspeaker providing natural hi-fi delity sound of both speech and music, suitable for sound system having fixed loudspeakers where the environment is acoustically critical or with architectural constraints.

The wide horizontal coverage angle (180°) and the vertical dispersion (60°) allow the correct sound reproduction in a wide space, in order to limit feedback and improve the sound directivity which is important, for instance, in halls having a long reverberation time.

The mounting accessories are included. These have been engineered to keep the column as close as possible to the wall and simplify the installation. Its tilt angle can be chosen among 0° – 5° – 10°. The 60° vertical dispersion is asymmetric: it is the difference between 20° upwards and 40° downwards. The vertical dispersion axis is in fact already angled 10° downwards, making it unnecessary to tilt the sound column excessively.

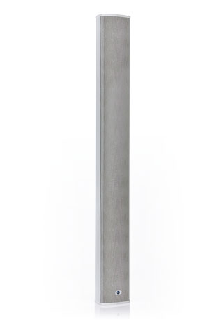

CS 6940 2 way column speaker

Ideal for speech reproduction with high intelligibility in acoustically diffi cult environments, both indoors and outdoors, also suitable for music
Music power/RMS: 80/40W
Eight 3" diameter speakers, one 20mm tweeter, fi ltered and connected for improved control of vertical dispersion
Weather-resistant construction IP 66 for use also outdoors, sturdy hinged support in resin, stainless steel fasteners
Body in aluminium and front grille in steel bake-painted RAL 9003 White Articulated support for wall mounting included

Acoustical Specifications

Frequency Response

Max SPL @ 1m:

Horizontal coverage angle:

Vertical coverage angle:

System Sensitivity:

Protections:

Crossover frequencies:

Tweeter:

Midrange:

Woofer:

Input connector:

Cabinet Material:

Grille:

Colour:

Height:

Width:

Depth:

Net Weight:

Features

2 rubber surround 3.5" woofers
2 fabric surround 3.5" mid-woofers
2 cloth coated 0.75" dome tweeters
40 / 80 Watt (RMS/Music Power)
Frequency range 130 Hz ÷ 20 kHz

118 dB (80 W/1 m) max. SPL
Incl. 100V transformer multitap
Power rotary switch
Direct connection to Low-Z speaker lines
Easy to install
Simple power settings

-10 dB: 130 Hz ÷ 20 kHz

118 dB

180°

60 (+ 20, - 40)°

93 dB

PTC on tweeter

2000 Hz

2 x 0.75" cloth coated dome tweeters

2 x 3.5" Mid-Woofer mit einer Gewebesicke

2 x 3.5" rubber surround woofers

euroblock

Self-extinguishing (HB level) high density polystyrene

Steel

Black / White

510 mm / 20.8 inch

120 mm / 4.7 inch

166.8 mm / 6.5 inch

3 kg / 6.6 lbs

Specifications

Type of speaker:

Frequency Response:

Max SPL @ 1m:

Horizontal coverage angle:

Vertical coverage angle:

Power Handling:

Peak Power Handling:

System Sensitivity:

Protections:

Crossover frequencies:

Speaker:

Tweeter:

Constant voltage:

Power Selection:

Hardware:

Colour:

Grille:

Height:

Width:

Depth:

Net weight:

Package height:

Package width:

Package depth:

Shipping weight:

Ideal for speech reproduction with high intelligibility in acoustically difficult environments, both indoors and outdoors, also suitable for music

Music power/RMS: 40/20W

Four 3" mid-woofer speakers and one central 20mm tweeter

Weather-resistant construction IP 66 for use also outdoors, sturdy hinged support in resin, stainless steel fasteners

Body in aluminium and front grille in steel bake-painted RAL 9003 White

Articulated support for wall mounting included

Applications

Auditorium
Halls
Churchs
Cathedrals
Meeting places

Column

160 Hz ÷ 20 kHz

110 dB

180°

40°

40 W RMS

80 W PEAK

94 dB

IP 66

4 Hz

8 x 3.15"

0.8"

100 V / 70 V V

40 - 20 - 10 - 5 W (100 V)

Body in aluminium

White

Steel

956 mm / 37.63 inch

114mm / 4.48 inch

96 mm / 3.77 inch

7 kg / 15.43 lbs

1070 mm / 42.12 inch

200 mm / 7.87 inch

170 mm / 6.69 inch

8.2 mm / 18.07 lbs

Applications

• Auditorium

• Halls

• Churchs

• Cathedrals

• Meeting places

CS 6520 2 way column speaker

Two-way speakers with very compact dimensions, the CS 6520 features 4 round extended-range speakers and a tweeter.

This model utilizes a series of innovative technological solutions that guarantee highly intelligible reproduction of the vocal message.

It' s complete with line transformer for directly connecting the speaker columns to 70 V or 100 V constant-voltage systems and, thanks to multiple sockets, permit selecting the power to be diffused from among various values.

Thanks to IP 66 insulation, the speaker columns can also be used out of doors.

Usable in railway stations, subways, churches, factories, warehouses, PA systems in general.

Specifications

Type of speaker:

Frequency Response:

Max SPL @ 1m:

Horizontal coverage angle:

Vertical coverage angle:

Power Handling:

Peak Power Handling:

System Sensitivity:

Protections:
