RETURNS

In the rare event that something has to be returned we allow 30 days from receipt of the purchased item for the purchaser to contact us before returning. Where possible new items will be replaced not repaired if faulty within 28 days. Items returned which are not faulty or returned as not wanted/wrongly ordered will be charged a 20% restocking fee. Items must be returned in the condition as dispatched with all original packing. Goods must be returned insured and carriage paid at the buyers expense. Used items are not normally accepted for return except if faulty on delivery. Consumables such as Styli, batteries etc will not be accepted for return

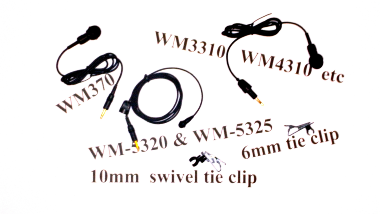

6mm tie clip                     For WM5320 & WM5325

10mm swivel tie clip        For all others (TOA sugested retail £12.36 + VAT)



Microphones

6mm tie clip

10mm swivel clip

7mm   swivel clip

Audio Technica AT829cw

tie clip microphone for transmitters   with HRS Plug


The Audio-Technica AT829cW is a cardioid lavalier microphone terminated with a locking 4-pin connector. The microphone is intended for use with A-T UniPak body-pack wireless transmitters. The microphone cable measures 55" in length (1.4 m).



Specifications


Transducer

Polar Pattern

Cable

Trantec LP2 microphone with 3.5mm jack plug



                                                                      The microphones on this page are genuine manufacturers spares as stated.    NOT copies

TOA  tie clip microphone for TOA transmitters

   TOA  YP-M5300     Uni-directional Lavalier Mic

For use with WM3310 - WM4310 - WM-5320 - WM-5325  Pocket Transmitter

With swivel tie clip



Trantec tie clip microphone with 3.5mm screw jack plug. For Trantec S4.4 & S4.16 radio microphone systems - MIC/LP2.

The LP-2 miniature lavalier microphone offers superb audio quality combined with stylish looks at an affordable price.

The robustly designed LP-2 is a high quality microphone consisting of an electret transducer capsule exhibiting an omni-directional characteristic.

It has been specifically designed to suit the requirements of everyday applications and is particularly suitable for voice applications, where highly intelligible speech is required. The LP-2 is available in black, has a permanently attached cable and windshield.


Manufacturer's part number: MIC/LP2


Polar Pattern:

Transducer Type:

Nominal Impedence:

Max SPL:

Operating Voltage:

Current Consumption:

Frequency response:

Cable Length


Trantec TS2 microphone with 4 pin Lemo plug




This microphone is the replacement for the TS259.



Trantec tie clip microphone with 4 pin lemo plug. For Trantec S4.5, S3.2, S1000 and S4000 radio microphone systems (ie. any Trantec belt pack transmitter with a 4 pin lemo socket!) - MIC/TS2.

The TS-2/LP-2 miniature lavalier microphone offers superb audio quality combined with stylish looks at an affordable price.

The robustly designed LP-2 is a high quality microphone consisting of an electret transducer capsule exhibiting an omni-directional characteristic.

It has been specifically designed to suit the requirements of everyday applications and is particularly suitable for voice applications, where highly intelligible speech is required. The TS-2 is available in black, has a permanently attached cable and windshield.

Pack contents: Trantec TS2 trantec lapel microphone with Lemo plug & tie clip.


Manufacturer's part number: MIC/TS2


Polar Pattern:

Type:

Max SPL:

Operating Voltage:

Current Consumption:

Frequency response:

Cable Length

Colours Available:

Termination:


Specifications

Generating Element
Polar Pattern
Sensitivity
Weight
Impedance
Bias
Current Drain
Rs


Stageline ECM-821LT  Tie clip microphone






TECHNICAL DATA:

System

Frequency range

Impedance

Sensitivity

Max. SPL

Admiss.  ambient temp.

Dimensions

Weight

Connection



Condenser

Cardioid

55" (1.4m), terminated for use with UniPak transmitters



Omni directional

Electret condenser

3 Kohms

>120dB

2-20 volts min/max

50uA

200Hz - 16KHz

1500mm



Omni directional Transducer

Electret condenser

>120dB

2-20 volts min/max

50uA

200Hz - 16KHz

1500mm

Black

4 pin lemo


Back electret
Omni-directional
10mV per Pascal, 100mV at 114dB SPL
15g (with 1.5m cable)
3KΩ (2-5KΩ)
1.3V (1-20V)
30μA at 1.3V (10-60μA)
16KΩ nominal

electret/cardioid

50-16,000Hz

680Ω

5.6mV/Pa/1kHz

110dB Power supply1.5-3V

0-40 °C

Ø 12mm x 18mm

22g

3.5mm plug



TOA  YP-M5310      Omni-directional Lavalier Mic

For use with   WM-5325    WM-3310    WM-4310    WM-5320   Pocket Transmitter





WM370 microphone

WM3310 - 4310 microphone

WM5320 microphone



Chord tie clip microphone  171-855




lavalier tie-clip microphone for use with VHF and UHF beltpack transmitters.


Replacement electret tie clip microphone

Chiayo  MC-520S
